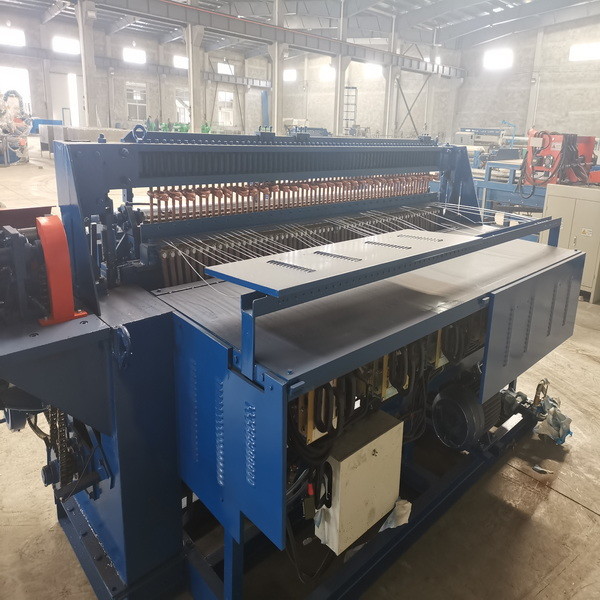

Automatic Seven Feet Width Weld Mesh Manufacturing Machine
1. Product description
The automatic seven feet width weld mesh manufacturing machine is used for making wire mesh. Professional independent production workshop, dozens of older skilled workers for production and commissioning of production machinery, to ensure the normal operation of the machine.Variety of specifications can be customized according to the requirements, including the wire diameter, wire width, hole size.
2. Technical parameter
| Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
| R- DHW | 7feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 7feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
| R- DHW | 7feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 7feet | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
| R- DHW | 7feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic seven feet width weld mesh manufacturing machine is extensively used in mining, petroleum, chemistry, food, medicine, machine manufacturing industry. It is used for machine protection for the above industries. The stainless steel wire mesh is even and constant. Welding spot is sturdy. The machinery property is stable, anti-corrosion perfomance is good.
4. Advantages
a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.
b. Line wire vertical straightening system to provide high quality.
c. Increased cost-effectiveness and reduced staffing requirements.
d. Welding pressure steplessly adjust to apply multiple wire diameter.
e. Welding using a new type of high efficient welding net transformer.
